Add Spectroscopy to ANY Microscope
Get a simple upgrade to your existing microscope, or a turnkey microspectrophotometer system that works out-of-the-box.
With its unique set of accessories, the SMS family of systems enable any standard microscope to be fitted with a spectrometer and a detector, offering the ability to perform techniques such as:
The SMS comes either as a complete system including the microscope, or as an upgrade to a user’s existing microscope. As an upgrade, the SMS system is compatible with any upright microscope from major microscope manufacturers, such as Olympus®, Nikon®, Zeiss® and Leica®.
The SMS offers high performance Raman microspectroscopy with specifications comparable to high-end benchtop systems, but with unrivaled flexibility.
Add Time-resolved Photoluminescence or lifetime point and imaging measurement to any SMS system with the Time Correlated Single Photon Counting (TCSPC) option.
Working in the time domain removes the confounding influences of concentration and photobleaching, as well as offering insights into temporal phenomena, such as carrier dynamics in photovoltaics and defects in semiconductors.
With its industry-leading true 100 MHz system operation, the SMS TCSPC option has fast acquisition rates, with decays acquired in mere milliseconds, allowing for TCSPC lifetime dynamic measurements. Select from our current catalog of over 70 compact pulsed light sources, with more being added all the time.
Perform broad-spectrum reflectance and transmittance measurements from UV to NIR with high spatial resolution.
With its open microscope frame design, the SMS system can accommodate micro-probes to enable electroluminescent measurements on LEDs, photovoltaic and other semiconductor materials.
Nanospectroscopy with Darkfield Scattering Technique
Take advantage of darkfield functionality on the microscope to perform nanospectroscopy on the SMS. Enable characterization of nanomaterials by measuring the light scattering spectrum in darkfield mode.

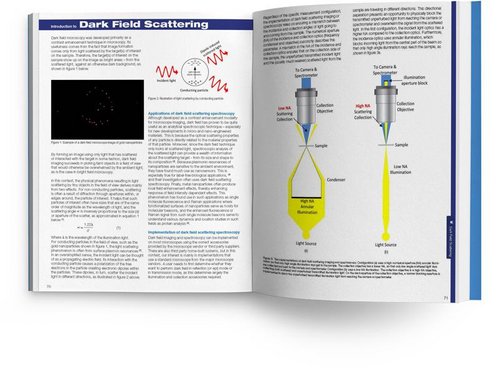

Download the SMS Brochure for more information
Spectrometer and Detectors | |||||||
Spectrometers | MicroHR | iHR320 | iHR550 | ||||
Excitation Lasers | 532 nm, 633 nm, 785 nm | ||||||
Spectral Range (cm-1) – Free space | 80 – 9500 (532 nm), 80 – 6500 (633 nm), 80 – 3400 (785 nm) | ||||||
Spectral Range (cm-1) – Fiber | 150 – 9500 (532 nm), 150 – 6500 (633 nm), 150 – 3400 (785 nm) | ||||||
Recommended Gratings | 1800 g/mm, 1200 g/mm, 600 g/mm | ||||||
Spectral Resolution1 (cm-1/ pixel) | 405 nm | 5.12 | 2.34 | 1.37 | |||
532 nm | 2.53 | 1.22 | 0.73 | ||||
633 nm | 1.54 | 0.78 | 0.48 | ||||
785 nm | 0.70 | 0.40 | 0.26 | ||||
Microscope | |||||||
Microscope Objectives | Magnification | 10X | 50X | 100X | |||
Spot Size (fiber-coupled) | < 50 μm | < 12 μm | < 6 μm | ||||
Spot Size (free space-coupled) | < 10 μm | < 5 μm | < 2 μm | ||||
Sample Stage | XYZ (Manual and motorized options available) – 75 x 50 mm; 100 x 100 mm; 150 x 150 mm; 300 x 300 mm | ||||||
Vision Camera | Software controlled vision camera included | ||||||
1 For 1800 g/mm grating and 26 μm pixel CCD
Spectrometer and Detectors | ||||||
Spectrometers | MicroHR | iHR320 | iHR550 | |||
Excitation Lasers1 | 266 nm, 325 nm, 405 nm, 532 nm, 633 nm, 785 nm, 980 nm, 1064 nm | |||||
Spectral Range (nm)2 | 250 nm – 2200 nm | |||||
Recommended Gratings3 | 1800 g/mm, 600 g/mm, 300 g/mm | |||||
Spectral Resolution4 (nm) | 0.39 | 0.18 | 0.1 | |||
Microscope | ||||||
Microscope Objectives5 | Magnification | 10X | 50X | 100X | ||
Spot Size (fiber coupled) | < 50 μm | < 12 μm | < 6 μm | |||
Spot Size (free space coupled) | < 10 μm | < 5 μm | < 2 μm | |||
Sample Stage | XYZ (Manual and motorized options available) – 75 x 50 mm; 100 x 100 mm; 150 x 150 mm; 300 x 300 mm | |||||
Vision Camera | Software controlled vision camera included | |||||
1Other laser wavelengths available on request
2 Extension into mid IR available on request
3 Other gratings available on request
4 Based on 1200 g/mm grating at 500 nm and a 26 μm pixel CCD
5 Reflective objectives may be recommended if working in the UV or using multiple sources that cover a broad spectral range
Spectrometer and Detectors | ||||||
Spectrometers | MicroHR | iHR320 | iHR550 | |||
Excitation Lasers | Discrete pulsed sources available from 260 nm to 1060 nm | |||||
Tunable pulsed white laser from 400 nm | ||||||
Spectral Range (nm) | 250 nm – 1700 nm | |||||
Recommended Gratings1 | 1200 g/mm, 600 g/mm, 300 g/mm | |||||
Spectral Resolution2 (nm) | 0.39 | 0.18 | 0.1 | |||
Measurable Lifetime Range3 | 25 ps to seconds | |||||
Microscope | ||||||
Microscope Objectives4 | Magnification | 10X | 50X | 100X | ||
Spot Size (fiber-coupled) | < 50 μm | < 12 μm | < 6 μm | |||
Spot Size (free space-coupled) | < 10 μm | < 5 μm | < 2 μm | |||
Sample Stage | XYZ (Manual and motorized options available) – 75 x 50 mm; 100 x 100 mm; 150 x 150 mm; 300 x 300 mm | |||||
Vision Camera | Software controlled vision camera included | |||||
Additional software5 | EzTime (or EzTime Image, if doing FLIM) | |||||
1 Other gratings available on request
2 Based on 1200 g/mm grating at 500 nm and a 26 μm pixel CCD
3 Electronics and detectors for lifetimes shorter that 25 ps available on request
4 Reflective objectives may be recommended if working in the UV or using multiple sources that cover a broad spectral range
5 Both EzTime and EzTime Image can be installed on the same computer as LabSpec 6
Spectrometer and Detectors | ||||||
Spectrometers | MicroHR | iHR320 | iHR550 | |||
Excitation Sources | Xenon Lamp (200 nm – 2200 nm) | |||||
Tungsten Halogen Lamp ( > 350 nm) | ||||||
Supercontinuum Laser ( > 400 nm) | ||||||
Spectral Range (nm)1 | 250 nm – 2200 nm | |||||
Recommended Gratings2 | 1200 g/mm, 600 g/mm, 15 0 g/mm | |||||
Spectral Resolution3 (nm) | 0.39 | 0.18 | 0.1 | |||
Microscope | ||||||
Microscope Objectives4 | Magnification | 10X | 50X | 100X | ||
Spot Size (fiber-coupled) | < 50 μm | < 12 μm | < 6 μm | |||
Spot Size (free space-coupled) | < 10 μm | < 6 μm | < 2 μm | |||
Sample Stage | XYZ (Manual and motorized options available) – 75 x 50 mm; 100 x 100 mm; 150 x 150 mm; 300 x 300 mm | |||||
Vision Camera | Software controlled vision camera included | |||||
1 Extension into mid-IR available on request
2 Other gratings available on request
3 Based on 1200 g/mm grating at 500nm and a 26 μm pixel CCD
4 Reflective objectives may be recommended if working in the UV or using multiple sources that cover a broad spectral range
Spectrometer and Detectors | ||||||
Spectrometers | MicroHR | iHR320 | iHR550 | |||
Excitation Source1 | Keithley Source Meter (2400 series) | |||||
Spectral Range (nm) | 250 nm – 14 μm | |||||
Recommended Gratings2 | 1200 g/mm, 600 g/mm, 150 g/mm | |||||
Spectral Resolution3 (nm) | 0.39 | 0.18 | 0.1 | |||
Microscope | ||||||
Microscope Objectives4 | Magnification | 10X | 50X | 100X | ||
Sample Stage | XYZ (Manual and motorized options available) – 75 x 50 mm; 100 x 100 mm; 150 x 150 mm | |||||
Vision Camera | Software controlled vision camera included | |||||
1 Other current voltage sources available on request
2 Other gratings available on request
3 Based on 1200 g/mm grating at 500 nm and a 26 μm pixel CCD
4 Reflective objectives may be recommended if working in the UV, or using multiple sources that cover a broad spectral range
Spectrometer and Detectors | ||||||
Spectrometers | MicroHR | iHR320 | iHR550 | |||
Excitation Sources | Lasers: 266 nm – 1064 nm | |||||
Xenon Lamp (200 nm – 2200 nm) – Tunable option available | ||||||
Tungsten Halogen Lamp ( > 350 nm) – Tunable option available | ||||||
Supercontinuum Laser ( > 400 nm) – Tunable option available | ||||||
Photocurrent Measurement1 | Keithley Source Meter (2400 series) | |||||
Recommended Gratings2 | 1200 g/mm, 600 g/mm, 150 g/mm | |||||
Spectral Resolution3 (nm) | 0.39 | 0.18 | 0.1 | |||
Microscope | ||||||
Microscope Objectives4 | Magnification | 10X | 50X | 100X | ||
Sample Stage | XYZ (Manual and motorized options available) – 75 x 50 mm; 100 x 100 mm; 150 x 150 mm; 300 x 300 mm | |||||
Vision Camera | Software controlled vision camera included | |||||
1 Extension into mid-IR available on request
2 Other gratings available on request
3 Based on 1200 g/mm grating at 500 nm and a 26 μm pixel CCD
4 Other objectives may be recommended if working in the UV, or using multiple sources that cover a broad spectral range
Spectrometer and Detectors | ||||||
Spectrometers | MicroHR | iHR320 | iHR550 | |||
Excitation Sources | Xenon Lamp (200 nm – 2200 nm) | |||||
Tungsten Halogen Lamp ( > 350 nm) | ||||||
Supercontinuum Laser ( > 400 nm) | ||||||
Spectral Range (nm)1 | 200 nm – 2200 nm | |||||
Recommended Gratings2 | 1200 g/mm, 600 g/mm, 150 g/mm | |||||
Spectral Resolution3 (nm) | 0.39 | 0.18 | 0.1 | |||
Microscope | ||||||
Microscope Objectives4 | Magnification | 10X | 50X | 100X | ||
Sample Stage | XYZ (Manual and motorized options available) – 75 x 50 mm; 100 x 100 mm; 150 x 150 mm; 300 x 300 mm | |||||
Vision Camera | Software controlled vision camera included | |||||
1 Extension into mid-IR available on request
2 Other gratings available on request
3 Based on 1200 g/mm grating at 500 nm and a 26 μm pixel CCD
4 Other objectives available on request
Do you have any questions or requests? Use this form to contact our specialists.
